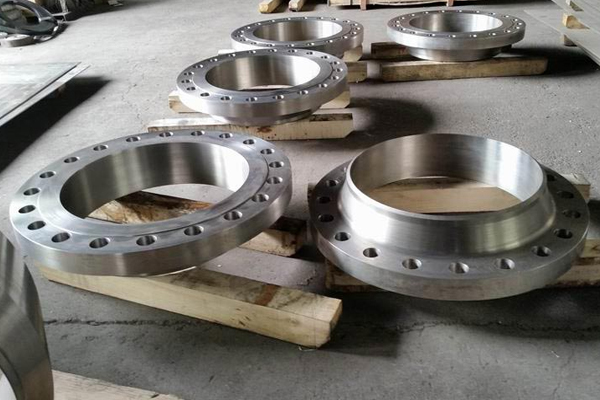

Nishra Overseas LLP is a Top Hastelloy Flange Manufacturer in Mumbai, India. We are an ISO 9001:2008 certified firm that has been active in the metal market since 2003. The design and development of Hastelloy C276 Flanges products adheres to both national and international quality standards. We provide all of our customers with the greatest pricing on Hastelloy B3 Flanges, and we have standard sizes, varieties, and materials in stock for quick shipping anywhere in the world. Our high-quality Hastelloy Flanges are specifically developed for a variety of piping applications.
Hastelloy Flanges are available in a variety of grades and varieties, including Slip-on, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip-on Boss, Plate, Plate Blank, and Screwed Boss. To meet the unique needs of our clients, we specialize in offering Hastelloy C276 Flanges, Hastelloy C22 Flanges, and Hastelloy B2 Flanges with a variety of specifications.
Our expertise also extends to Hastelloy C276 Flanges, which come in a variety of sizes and specifications. We use cutting-edge technology to provide high-quality standards, and our first objective is client happiness through competitive price. Nishra Overseas, a reputable manufacturer of Hastelloy C22 Flanges, offers affordable and dependable solutions for all of your industrial needs.
Hastelloy C276 Flanges are created of a nickel-chromium-molybdenum alloy that is also known as Alloy C-276 Flanges. The alloy is composed of 50.99% nickel, 14.5% chromium, 15% molybdenum, and other elements like silicon, carbon, manganese, sulfur, cobalt, iron, and phosphorus. These flanges can withstand temperatures as high as 1370°C, and their melting point is at that point. Their lowest yield strength is 355 MPa, while their lowest tensile strength is 790 MPa. They are employed in situations that call for vigorous operations and great performance and dependability.
| Specifications | ASTM B564 / ASME SB564 |
| Size Chart of SS Blind Flanges | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure rating of SS WN flanges | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| American Standard of SS Flanges | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Flange Forging Methods | Forging/ Casting/ Rolling And Cutting |
| Pressure Calculation in DIN | PN6, PN10, PN25, PN40, PN64 | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar. |
| Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc |
| NPS (in.) | Hastelloy Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub | Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Diameter of Bolts (inch) | KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
| ASME | Pressure Temperature Ratings For Hastelloy Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
| Hastelloy C276 Flanges | Hastelloy C276 Forged Flanges |
| ASTM B564 Hastelloy X Lap Joint Flanges | C22 Hastelloy ASME B16.5 Flanges |
| Hastelloy C276 Raised Face Flanges | DIN 2.4602 Hastelloy Nipoflange |
| Hastelloy C276 DIN Standard Flanges | ASME SB564M Hastelloy C276 SWRF Flange |
| Hastelloy Alloy C2000 Tongue & Groove Flanges | Alloy C22 Male & Female Flanges |
| Hastelloy DIN 2.4617 Square Flanges | ASME SB564 Hastelloy C22 BLRF Flange |
| Hastelloy C22 Flat Flange | Hastelloy B2 Slip on Flanges |
| Hastelloy UNS N10276 Flanges | Hastelloy C2000 EN 1092-1 Flanges |
| Hastelloy C22 BS 4504 Flanges | ANSI C22 Alloy Blind Flange |
| Alloy C22 Weld Neck Flanges | Hastelloy C276 Socket weld Flanges |
| Hastelloy C276 WNRF Flange | Alloy C22 Threaded Flanges |
| Hastelloy UNS N06022 Reducing Flanges | Hastelloy DIN 2.4819 Orifice Flange |
| Hastelloy C2000 Spectacle Blind Flanges | Hastelloy C2000 Ring Type Joint Flanges |
| Hastelloy C276 Long Weld Neck Flanges | Hastelloy C22 SORF Flanges |
| ANSI B16.5 Hastelloy Alloy C276 RTJ Flanges | Hastelloy B2 Screwed Flanges |
| Oil and Gas Processing | Dairy and Food Processing |
| Desalination | Pesticides |
| Pulp and Paper | Sugar Factory |
| Energy industries | Power Plants |
| Ship Building | Fertilizers |
| Machine Building | Nuclear |
| Pharmaceuticals | Chemicals |
| Textile Machinery | Synthetic Fibers |
| Construction | Modern Architecture |
| Refinery & Petrochemicals | Water treatment facilities |
Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.
Carbon Steel, Alloy Steel Flanges and Stainless Steel Slip On Flanges are delivered with or without surface protection, as determined by the manufacturer.
The company delivers Hastelloy Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
