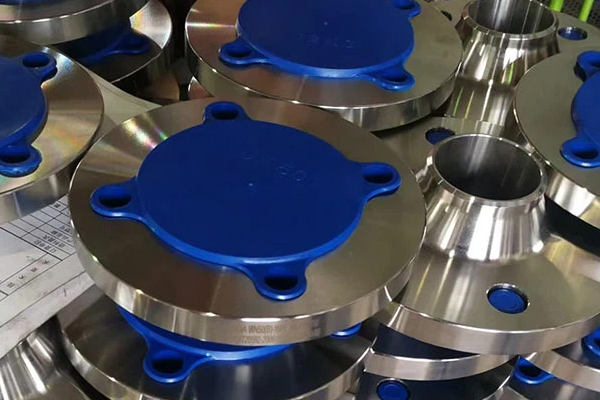

Nishra Overseas LLP is a largest Duplex Steel Flanges manufacturer in Mumbai, India. Our products are made using premium raw materials and cutting-edge technology in compliance with national and international industry standards. After undergoing a number of quality inspections, our ASME SA815M Duplex Steel and other items are packaged. Nishra Overseas is the world's top exporter of Duplex Stainless Steel Flanges. We have a ready stock of stainless steel in various sizes and forms to meet our customers' requirements. By offering them our goods and services, we consider our clients as partners.
Duplex steel spectacle blind flanges are hot wrought at temperatures ranging from 954 to 1149°C (1750 to 2100°F). Duplex Steel Welding Neck Flange Forging is tough to make due to its high strength and work hardening rate.
Duplex Steel Flanges are specifically designed for a variety of piping applications across multiple industries. Among many other things, we are renowned for being one of the biggest suppliers of premium duplex steel buttweld fittings, duplex flanges, and duplex steel gaskets. A stainless steel flange is considered a vital component of the pipe fitting industry. We are also recognized as one of the largest suppliers of super duplex steel.
Duplex Steel DIN 1.4462 Socket Weld Flanges are exceptionally resistant to stress corrosion cracking, erosion, pitting, cracks, and general corrosion in severe environments, as well as having high fatigue strength. We have a large inventory of Duplex Steel ASTM A182 Flanges, including Duplex Steel S31803 Weld Neck Flanges, Duplex 2205 Slip On Flanges, Duplex F51 Socket Weld Flanges, Duplex Steel F60 Screwed / Threaded Flanges, Duplex 2205 Ring Type Joint Flanges (RTJ), Duplex Steel F56 Orifice Flanges, Gr. F52 Duplex Blind Flanges, Duplex Steel S32205 Spectacle Blind Flanges, Duplex Steel F61 Reducing Flanges, and so on.
| Specifications | ASTM A182 / ASME SA182 |
| Size Chart of SS Blind Flanges | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure rating of SS WN flanges | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| American Standard of SS Flanges | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Flange Forging Methods | Forging/ Casting/ Rolling And Cutting |
| Pressure Calculation in DIN | PN6, PN10, PN25, PN40, PN64 | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar. |
| Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc |
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub | Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. of Bolts (inch) | KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
| 3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
| 1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
| 2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
| 3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
| 3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
| 4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
| 5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
| 6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
| 8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
| 10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
| 12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
| 14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
| 16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
| 18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
| 20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
| 24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
| 2205 Duplex Steel Flanges | EN 1092-1 ASTM A182 S31803 Duplex Steel Flanges |
| Duplex Steel Grade F55 Reducing Flanges | Duplex Steel F56 Ring Type Joint Flanges |
| Duplex Steel DIN 1.4462 Orifice Flange | Duplex Steel S32205 Spectacle Blind Flanges |
| Duplex Steel UNS S32205 WNRF Flange | Duplex 2205 SORF Flanges |
| ANSI B16.5 Duplex Steel F57 RTJ Flanges | Duplex Steel S31803 Screwed Flanges Stockist |
| A182 Duplex Steel S32205 Square Flanges | ASME SA182M Duplex Steel S31803 SWRF Flange |
| Duplex Steel F61 Tongue & Groove Flanges | Duplex Steel S31803 Male & Female Flanges |
| Duplex Steel S32205 DIN Flanges | 2205 Duplex Steel ASME B16.5 Flanges |
| ASTM A182 S31803 Duplex Steel F59 Lap Joint Flanges | ASME SA 182 S32205 Duplex Steel BLRF Flange |
| Duplex Steel S32205 BS 4504 Flanges | Duplex Steel 2205 Forged Flanges |
| Duplex Steel ASTM A182 UNS S31803 Flanges | Duplex Steel S32205 Slip on Flanges |
| Duplex Steel Gr. F51 Flat Flange | ANSI 2205 Duplex Steel Blind Flange |
| Duplex Steel Gr. F52 Weld Neck Flanges | Duplex Steel S31803 Socket weld Flanges |
| Duplex Steel F53 Long Weld Neck Flanges | Duplex F54 Threaded Flanges |
| Duplex Steel Gr. F60 Raised Face Flanges | 2205 Duplex Steel Nipoflange |
| Oil and Gas Processing | Dairy and Food Processing |
| Desalination | Pesticides |
| Pulp and Paper | Sugar Factory |
| Energy industries | Power Plants |
| Ship Building | Fertilizers |
| Machine Building | Nuclear |
| Pharmaceuticals | Chemicals |
| Textile Machinery | Synthetic Fibers |
| Construction | Modern Architecture |
| Refinery & Petrochemicals | Water treatment facilities |
Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.
Carbon Steel Stainless Steel Flanges and Stainless Steel Slip On Flanges are delivered with or without surface protection, as determined by the manufacturer.
The company delivers Duplex Steel Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
